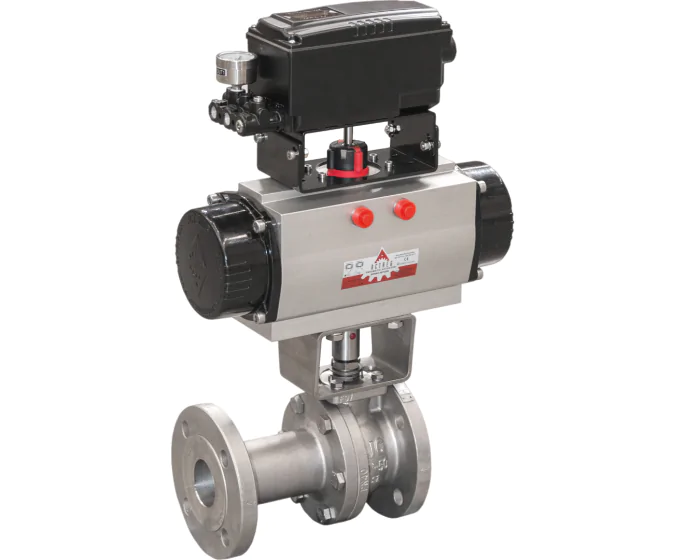

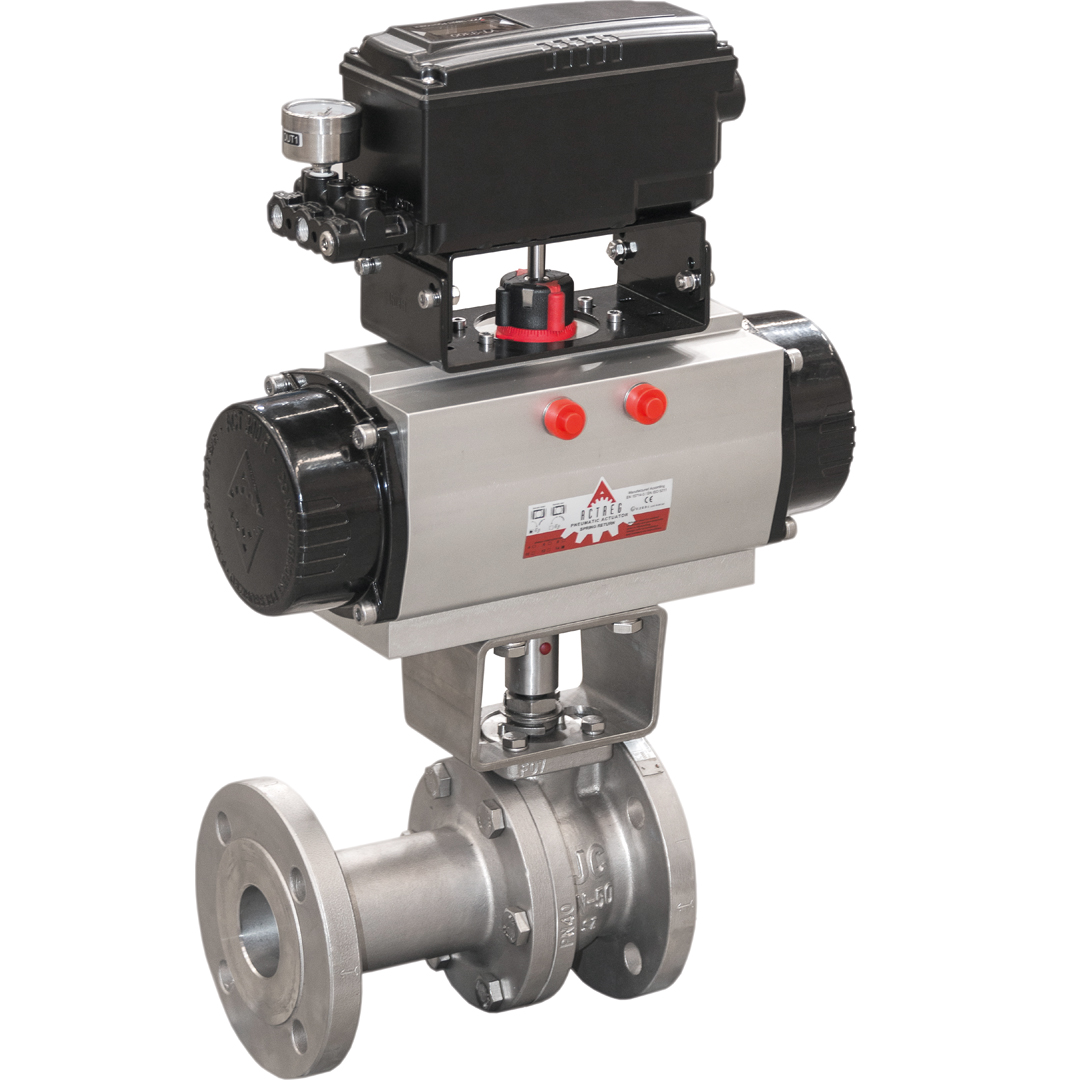

Stainless steel body and ball 1.4408, 60° V ball. Fire safety. PTFE-stainless steel seats. PS: 40 bar up to DN50, 16 bar above. Single acting pneumatic actuator and 4-20 mA positioner.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Delta P (bar) | 10 |
| DN | DN65 - 2''1/2 |
| Kv (m³/h) | 150.00 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Type of positioner | Intelligent |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Function | Regulation |
| TS max (°C) | 230 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) DN65 - 2''1/2 | 316IIS065V6ASR64 | S1009852 |
€3,423.23
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN80 - 3'' | 316IIS080V6ASR64 | S1009853 |
€4,562.74
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN100 - 4'' | 316IIS100V6ASR64 | S1009854 |
€5,485.44
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN15 - 1/2'' | 340IIS015V6ASR64 | S1009855 |
€1,951.57
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN20 - 3/4'' | 340IIS020V6ASR64 | S1009856 |
€2,061.37
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN25 - 1'' | 340IIS025V6ASR64 | S1009857 |
€2,197.91
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN32 - 1''1/4 | 340IIS032V6ASR64 | S1009858 |
€2,469.77
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN40 - 1''1/2 | 340IIS040V6ASR64 | S1009859 |
€2,687.16
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) DN50 - 2'' | 340IIS050V6ASR64 | S1009860 |
€3,064.90
(excl. btw)
|
add to cart |
